AE86 tail light Lens number help
|
01-30-2007, 10:02 AM
Post: #1
|
|||
|
|||
AE86 tail light Lens number help

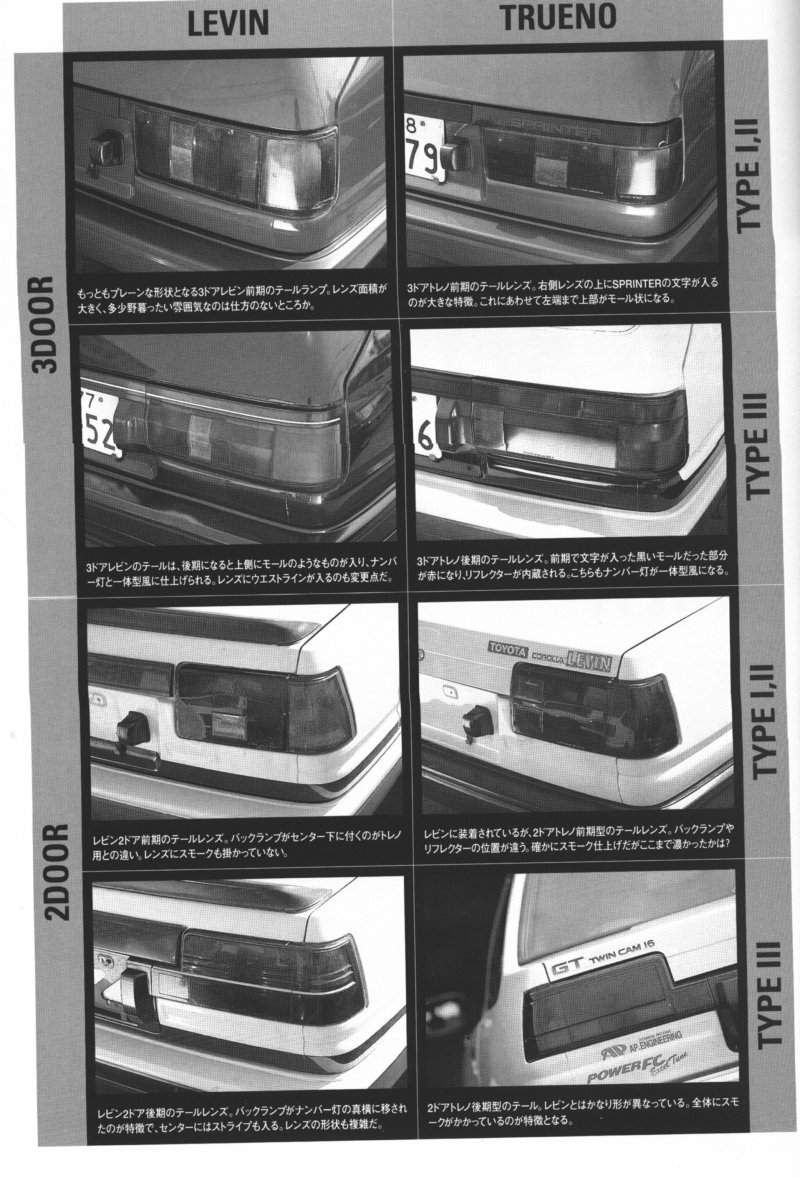

Hi there I am after the lens numbers for the following tail lights
I have the top two: Top Left pic : 12-182 Top Right pic : 12-184 Can anyone id the rest, cheers Corolla Levin SR 1984 AE-85 (Project car) Corolla Runx Z 2002 (Runabout) |
|||
02-01-2007, 07:24 PM
Post: #2
|
|||
|
|||
AE86 tail light Lens number help
Difficult one, but I wonder if anyone knows of a company who'd peproduce the lenses? Can you still buy them new?
Bang her in 1st and make her Tramp Toyota Corolla AE86 GT Rally Car E30 BMW 318is Rally Car |
|||
02-02-2007, 05:31 AM
Post: #3
|
|||
|
|||
AE86 tail light Lens number help
Garth Wrote:Difficult one, but I wonder if anyone knows of a company who'd peproduce the lenses? Can you still buy them new? Not really, I just need people to have a look at there tail lights, they still make them new but there is a toyota wreaker in nz that has heaps of taillights but only has the lens numbers to id them . Corolla Levin SR 1984 AE-85 (Project car) Corolla Runx Z 2002 (Runabout) |
|||
02-10-2007, 06:18 AM
Post: #4
|
|||
|
|||
AE86 tail light Lens number help
No one has tail lights on there AE86
Corolla Levin SR 1984 AE-85 (Project car) Corolla Runx Z 2002 (Runabout) |
|||
02-10-2007, 10:10 AM
Post: #5
|
|||
|
|||
AE86 tail light Lens number help
I have but just first two (you already said that you have the IDs).
|
|||
02-10-2007, 08:08 PM
Post: #6
|
|||
|
|||
AE86 tail light Lens number help
You need the Toyota part numbers right? Here's some that I know.
Zenki Coupe Smoked Left Tail - 81560-80173 Right Tail - 81550-80168 Kouki Hatch Redlines Left Tail - 81560-1A291 Center Piece - 75803-12070 Right Tail - 81550-1A291 Kouki Coupe Redlines Left Tail - 81560-1A302 Center Piece - 75801-12011 Right Tail - 81550-1A302 |
|||
02-11-2007, 12:07 AM
Post: #7
|
|||
|
|||
AE86 tail light Lens number help
Chixican Wrote:You need the Toyota part numbers right? Here's some that I know. Thanks for that but I am after the lens numbers which is on written on the tail light itself. starts with a 12-*** Corolla Levin SR 1984 AE-85 (Project car) Corolla Runx Z 2002 (Runabout) |
|||
02-11-2007, 12:33 PM
Post: #8
|
|||
|
|||
AE86 tail light Lens number help
Gotcha, boo on me, just for that I'll look up my lens numbers and post them for ya.
|
|||
02-13-2007, 06:39 PM
Post: #9
|
|||
|
|||
AE86 tail light Lens number help
Zenki Coupe
USDM (Type I) = 12-183L and 12-183C JDM (Type II) = 12-185L and 12-185A If I have a chance I'll check my buddy's redlines and kouki hatch, maybe even the sprinters. |
|||
