I hope someone here can assist me.
In the US we have a AFM AE86 Corolla with retracable head lights and its LHD and Analog Cluster.

Well I converted mine to RHD and I have all JDM wiring front to back now so my engine setup is running MAP now.

What I need is the wiring schematics for a JDM AE86 Trueno with an Analog gauge cluster. I know in the UK you guys got both Truen/Levin Digital and Analog clusters.

Right now my head lights and a few other electric pieces are not working and this would really cut time on troubleshooting if I could get the wiring colors etc.

Thanks

Joel

[banpei]

I do have the wiring diagrams of the EU hachi which runs MAP. However I still didn't have time to scan/photograph it completely.
I'll have a look tonight if I can find out which ones I already did.

[VAs Hachi Roku]

Yes I have a feeling I might need it. It would really help to have the wiring diagrams so I will know what wire goes where and what color it is. Other wise it will take me forever trying to troubleshoot the issue. Also if I take it to a wiring place they said that they would need the JDM diagrams which i'm assuming are the same as a UK diagram?

JDM AE86 ZENKI TRUENO 3 DOOR ANALOG CLUSTER is what I have for wiring.

[irishtwincam]

Europe didnt get the trueno officially I believe.
There wouldnt be any wiring diagrams for a UK/EU retractable headlight model.

The only digital dashs about should only be JDM imports.

[banpei]

Idd. The EU manual doesn't cover the retracable headlights but it does cover the MAP sensor.
Hachilife used to have the US manual online as well, but it is not fully accessable anymore:
http://www.driftfactory.com/86manual.php

So combining those two would solve it. I'll see if I can find any way to mirror it or something.

[VAs Hachi Roku]

To bad I cant find a Japanese Manual even if it is in Japanese the wiring can be understood since the color codes, +, -, etc.

I do wonder if the wiring you guys have in your Levins is the same as JDM Levin wiring meaning same part number.

[alimonos]

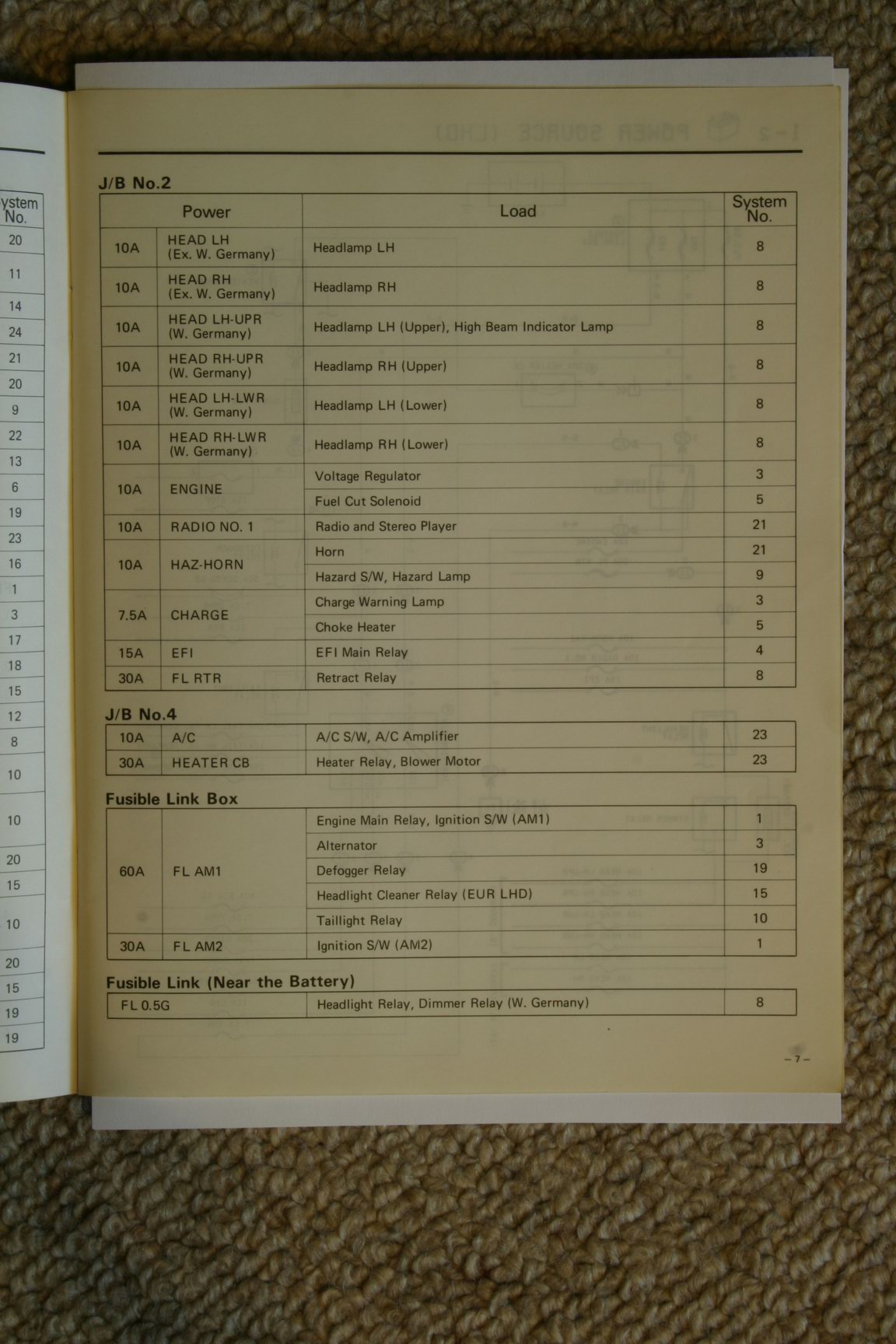

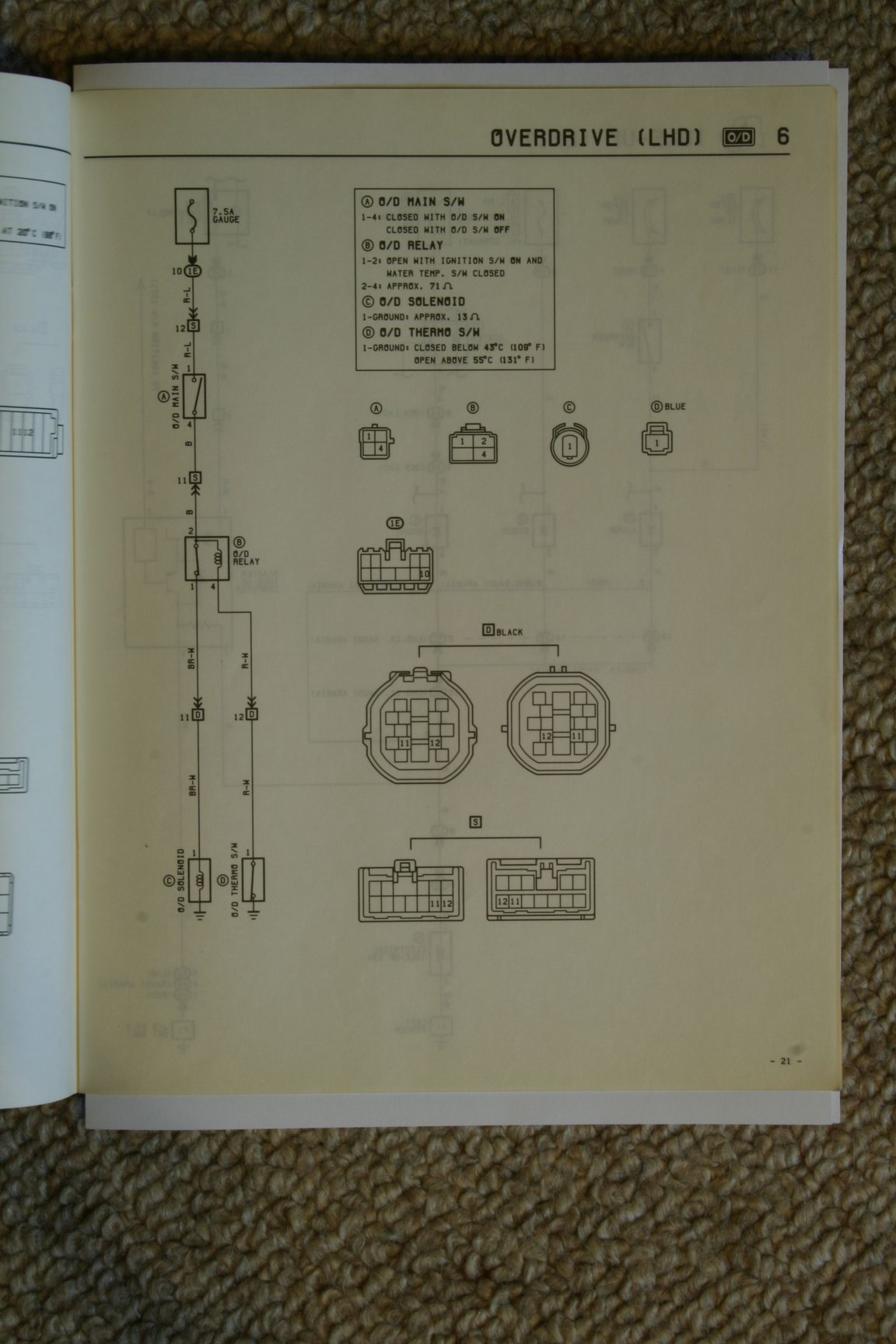

Joel here are some diagramms i think will help you :wink:

[banpei]

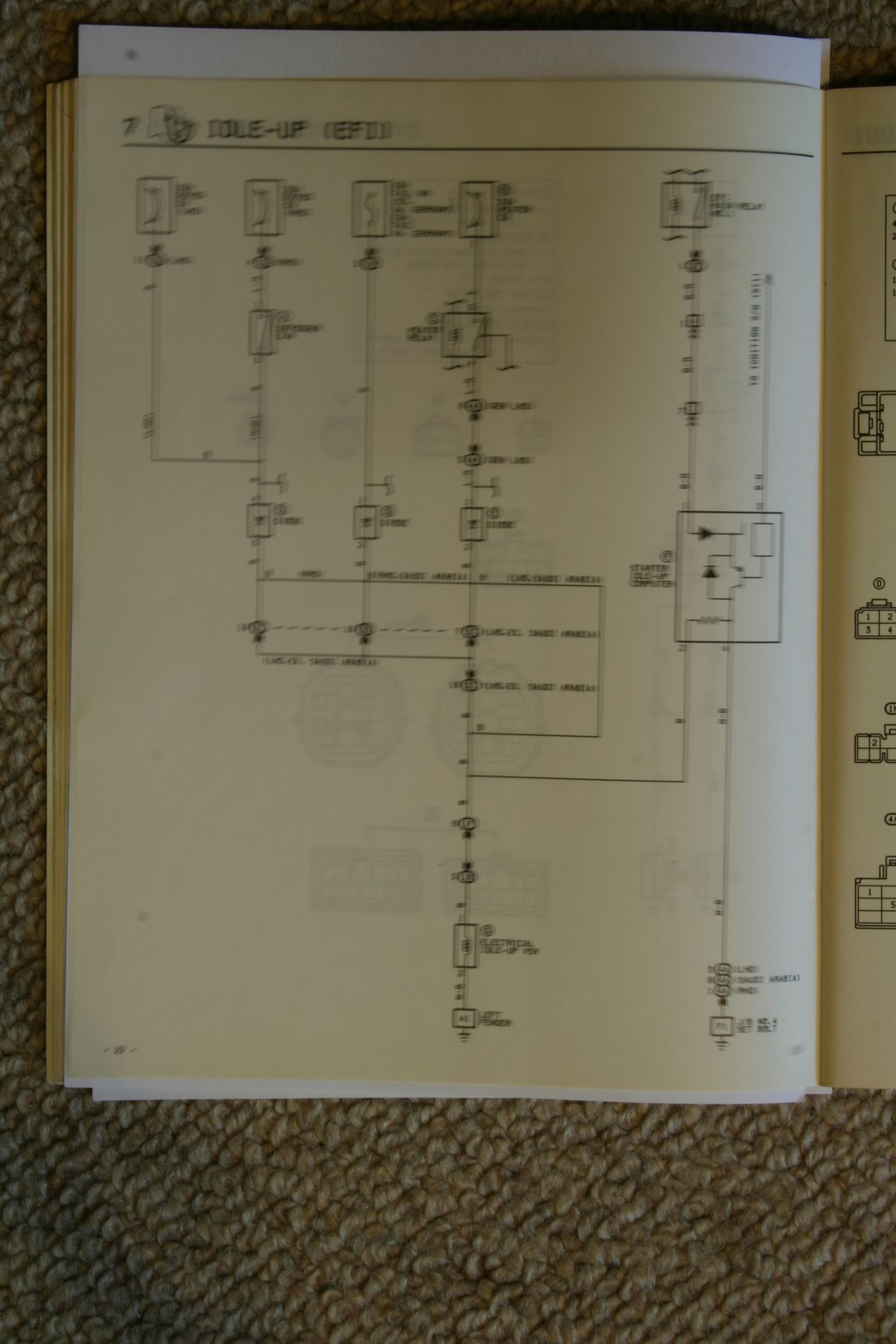

Okay. I've currently got the EFI system and the wiring routing, so roughly that's about 25 pages...
However they say nothing about color coding.

[VAs Hachi Roku]

Well I'll take anything I can get somethign is better than nothing!

alimonos - thanks for those I've saved them I'll be printing them out at work!

[banpei]

I'll post them tonight then.

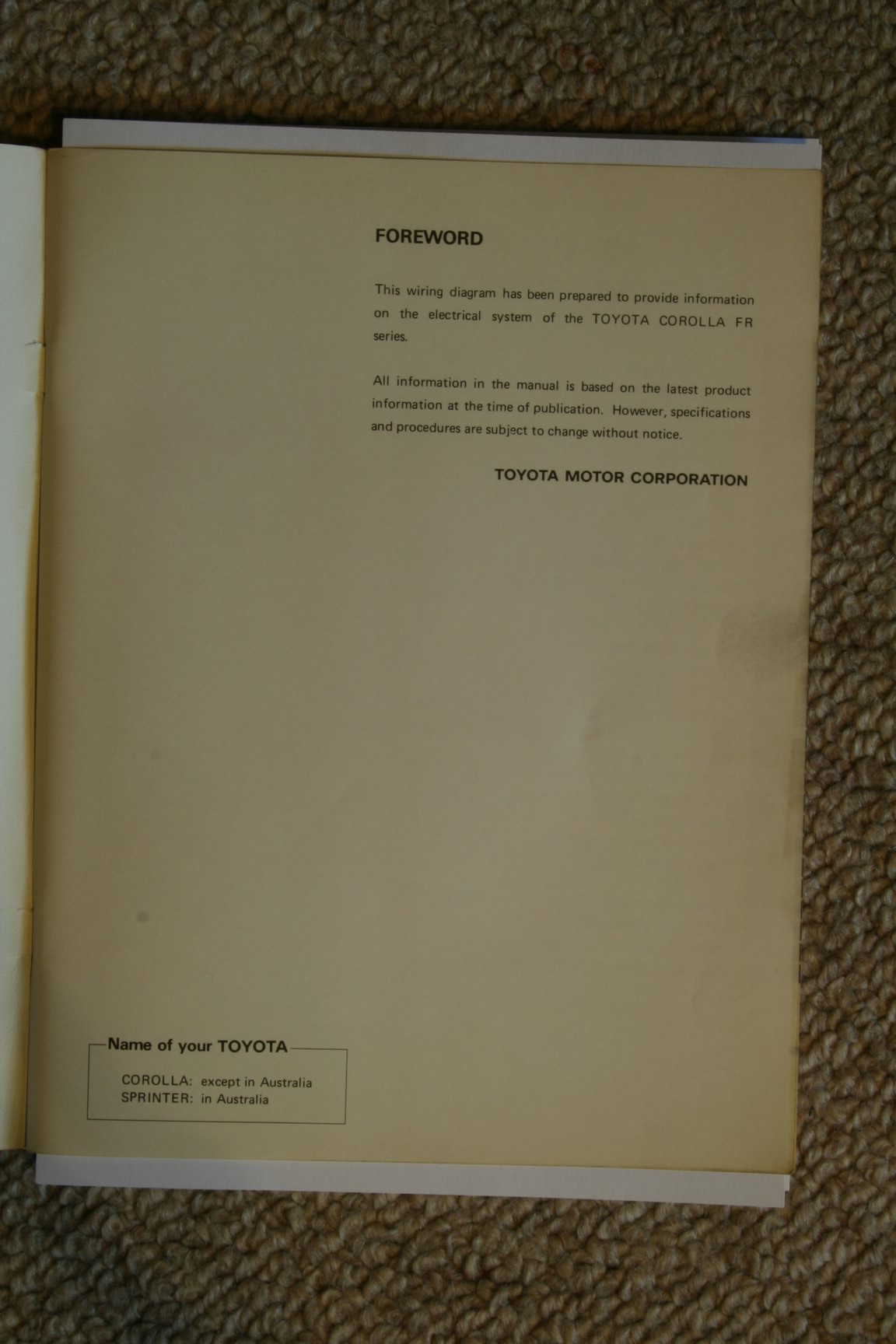

Edit: here they are.
