Need some help

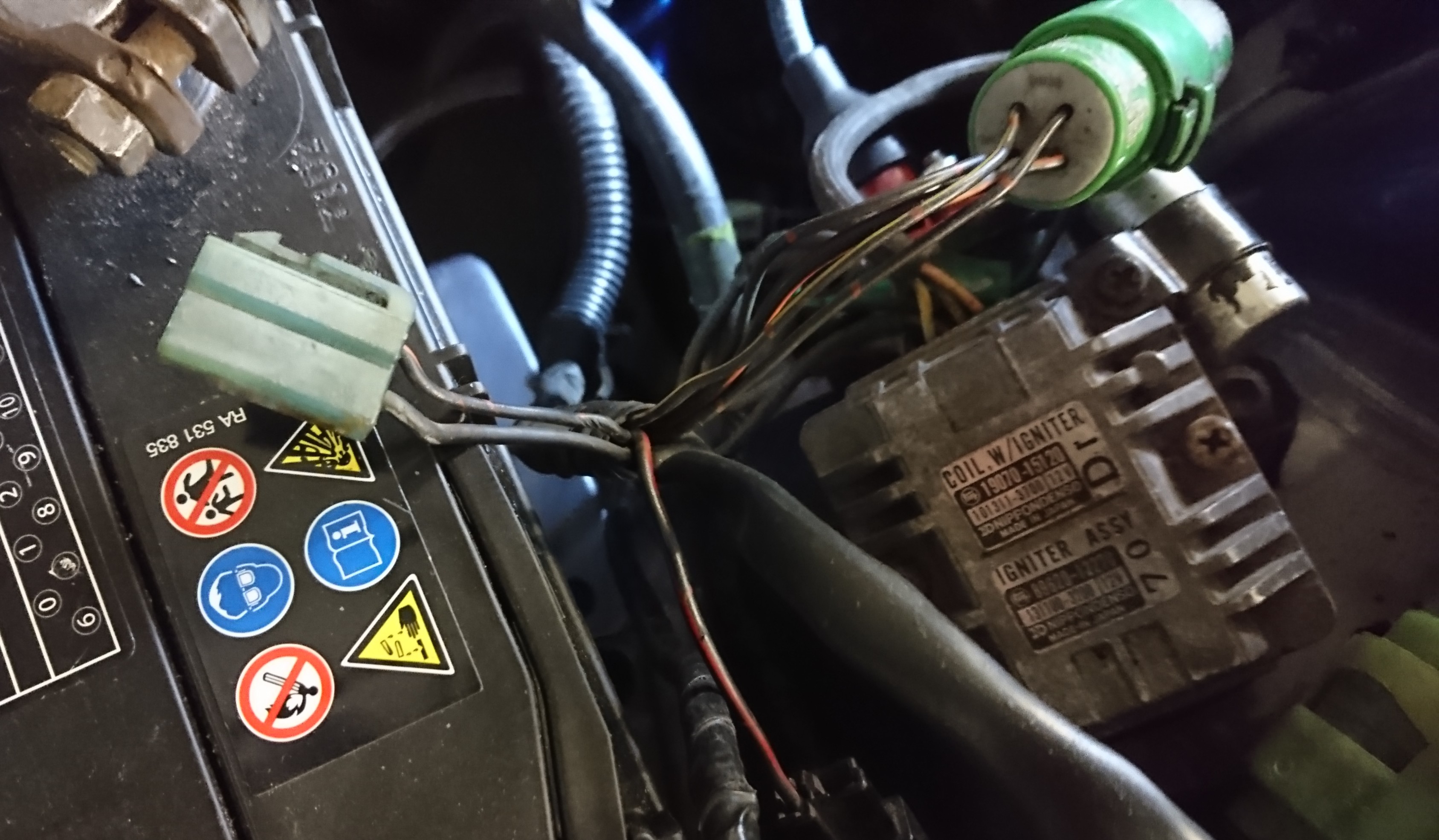

Anyone know what these wires / plugs are for?


Attached File(s) Thumbnail(s)


[Image: AEU86 AE86 - Need some help]
5/2018 BMW F22 Coupe
1/1985 Toyota AE86 Levin Coupe
Find all posts by this user
03-09-2018, 07:31 AM
Post: #2
Need some help
first one looks like reverse lights switch, second one is a link betweek the loom which come out behind the battery and the loom which comes over the front of the cam covers i think.
Find all posts by this user
03-11-2018, 12:05 PM
Post: #3
Need some help
thanks Nakilad

The first one goes to the reverse switch on the gearbox indeed.
Somebody on Facebook could tell me the other one is a plug for a radio interference resistor.

[Image: AEU86 AE86 - Need some help]
5/2018 BMW F22 Coupe
1/1985 Toyota AE86 Levin Coupe
Find all posts by this user
03-12-2018, 10:57 AM
Post: #4
Need some help
It could be yes, if so then I believe the resistor should be mounted to the coil chassis bolts (at least that is what i looks like in the wiring diagram). Can't guantee that as it is missing from my car.
Find all posts by this user
03-13-2018, 05:37 PM
Post: #5
Need some help
Thats right.

The transistor ir located near the coil (OEM placement) and it's a tiny black piece.... Smile

Cheers
Find all posts by this user
