Wiring Question
|
|
02-01-2005, 01:00 PM
Post: #1
|
|||
|
|||
|
Wiring Question

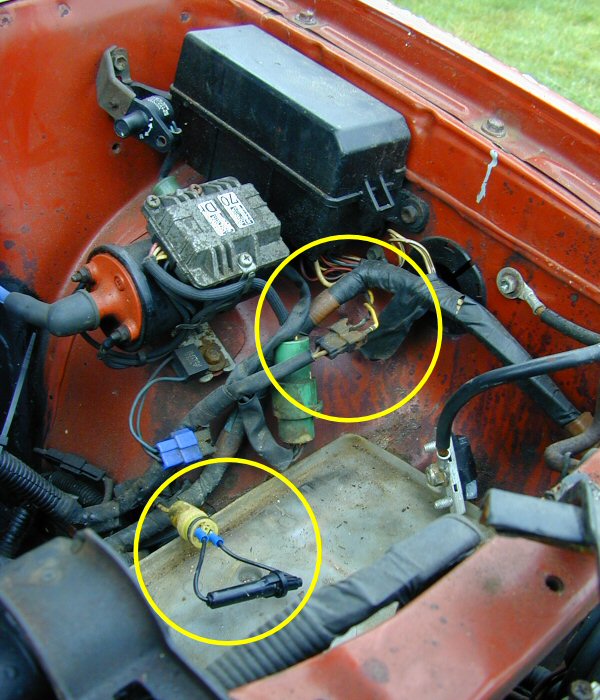

I have a couple of improvised connectors in my engine bay, does anyone have an idea where they go or should look like. The yellow one has been bridged so i guess that is a sensor that has been disconnected. The previous owner had some extra guages installed so i expect that is the reason.
![[Image: AEU86 AE86 - Wiring Question]](http://www.ae86.co.uk/avatar/signature.gif "AEU86 AE86 - Wiring Question")
|
|||
|
|
02-01-2005, 02:07 PM
Post: #2
|
|||
|
|||
|
Wiring Question
DELETED :!:
Edit: Sorry! I didnt look hard enough... Sarcasme is just one of the things I offer  Daily driver: '92 Toyota Carina E GTI Rebuilt project: '86 Levin hatch ![[Image: AEU86 AE86 - Wiring Question]](http://i244.photobucket.com/albums/gg11/JJGP2/nur_ae86.jpg "AEU86 AE86 - Wiring Question")
|
|||
|
|
|
02-01-2005, 02:13 PM
Post: #3
|
|||
|
|||
|
Wiring Question
Jan this must be up there next to fuse-box.
JonT take a look at this topic! Has helpfull links... :wink: http://www.aeu86.org/viewtopic.php?t=792 AE86 FANATIC!!! |
|||
|
|
|
02-09-2005, 02:07 PM
Post: #4
|
|||
|
|||
|
Wiring Question
Could someone take a picture of the wiring behind the battery and across to the distributer to help me trace these connections. I'm especially interested in the yellow connector that has had a fuse or resister bridged across it.
|
|||
|
|
|
02-10-2005, 11:11 AM
Post: #5
|
|||
|
|||
|
Wiring Question
The yellow one looks like the injector resitance box connector to me, it has to be bridged depending on what injectors/ecu you use.... you might find some info about that here:
http://forums.club4ag.com/topic.asp?TOPIC_ID=66430 |
|||
|
|
|
