Dimensions clutch master cylinder
04-15-2015, 07:39 AM
Post: #1
Dimensions clutch master cylinder
Gents,

Just chasing some dimensions on the AE86 clutch master cylinder.
Currently not able to measure these myself on the car hence this topic.

Looking for:
- Outside diameter of housing;
- Size of studs;
- Center to center of studs (bolt pattern);
- Length behind face of mounting flange;
- Length in front of face of mounting flange;
- Stroke;
- Thread size push rod;
- Length of push rod.

To put all the information in this topic for future reference the bore is 0.625"

Regards,

Bozu

AE86 Levin
Find all posts by this user
04-15-2015, 06:39 PM
Post: #2
Dimensions clutch master cylinder
- Outside diameter of housing:
~26mm outside, 30mm for the hole on the firewall
- Size of studs:
1 stud 1 bolt, both in M8
- Center to center of studs (bolt pattern):
72mm @ 45° asymmetrical (40/32 from the center)
- Length behind face of mounting flange:
~45mm
- Length in front of face of mounting flange:
~80mm (including the flange)
- Stroke:
~30mm
- Thread size push rod:
M8
- Length of push rod:
~50mm

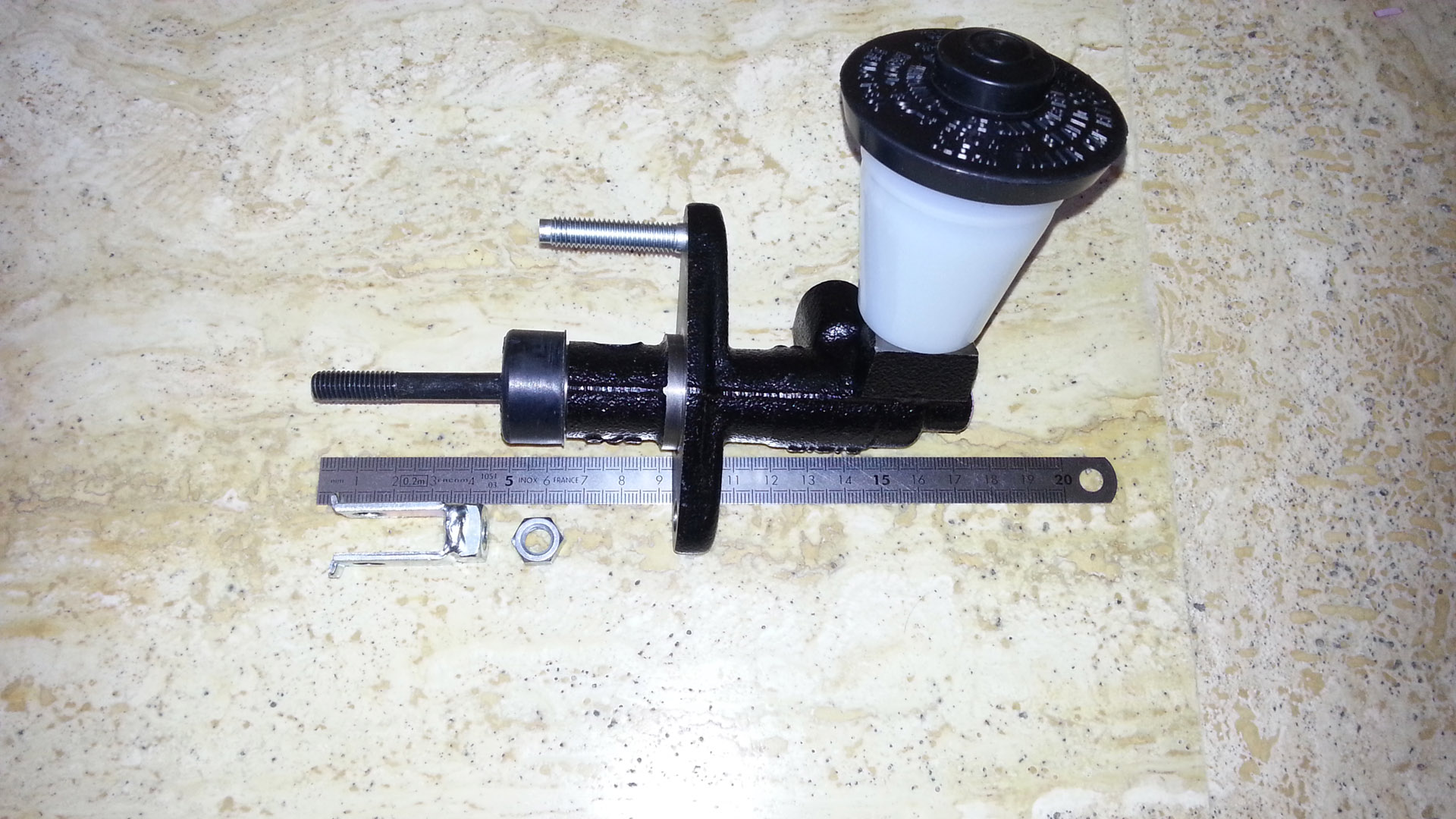

Attached File(s) Thumbnail(s)

Find all posts by this user
04-16-2015, 07:11 AM
Post: #3
Dimensions clutch master cylinder
You da man! Thank you very much!

AE86 Levin
Find all posts by this user
