Firehawk's N2 racecar project
06-25-2006, 07:15 PM
Post: #41
Firehawk's N2 racecar project
Great work firehawk .. Smile

2 NoHachi: how to get things from Ground Control, they don't ship internationally...

Toyota scrap yard car park = AE92GTi - AE82GT - KE30 - KP62
Find all posts by this user
06-26-2006, 09:43 AM
Post: #42
Firehawk's N2 racecar project
Oh crap.. Friend of mine who works at the local Toyota dealer, checked for the price of the clutch member kit 41307-14011 which contains those two blocks. It seems that they are no longer available and out of production. So it looks like I'm pretty much screwed. Angry

If anyone has a worn out LSD or otherwise broken with the clutch members still intact, please contact me!


Attached File(s) Thumbnail(s)

Visit this user's website Find all posts by this user
06-29-2006, 02:35 PM
Post: #43
Firehawk's N2 racecar project
Well, it seems that the clutch members are the parts which usually break in the original LSD if anything does break. This means that I have to buy a complete original LSD to replace the current one. Oh well..

On the bright side. my 4.778 final drive kit from SYM arrived! Big Grin Very nice, thank you! I started to calculate how the final drive affects the actual top speeds of each gear. If using the stock sized 185/60R14 tyres and a rev limiter at 7850rpm, on 5th gear, the top speed of the car falls from 231km/h to 208km/h and on 4th gear, the the rev limit kicks in at 179km/h instead of 199km/h. However, given that I'm considering using 195/45R14 tyres, the top speed of each gear would be as follows;

1st: 46km/h
2nd: 81km/h (~4400rpm=46km/h)
3rd: 119km/h (~5350rpm=81km/h)
4th: 165km/h (~5700rpm=119km/h)
5th: 191km/h (~6800rpm=165km/h)

Very nice and tight! Smile The shift from first to second drops the revs a bit low but first gear usually isn't that much needed anyway when driving on a track.

If you want to calculate the speeds on different gearings and tyres, here's something I made quickly at work (hahaa); OpenOffice / Excel. Have fun. Smile

I also re-arranged the project image gallery because I had to switch servers - while I was at it, I added some new photos of the current progress;
http://www.r5r.net/gallery/v/projects/ae86/

Edit: updated the spreadsheets to new ones that show also the upshift RPMs.
Visit this user's website Find all posts by this user
06-29-2006, 03:28 PM
Post: #44
Firehawk's N2 racecar project
This diff parts are available but costs more than 400 euros as the diff itself from Toyota costs more than 1.000 euros Huh

So, get yourself a good used TRD one from Jp.

danielvanderwoude Wrote:looks like the nmwisima joke saved you in the end
[Image: AEU86 AE86 - Firehawk's N2 racecar project] http://www.jdmbits.com
Visit this user's website Find all posts by this user
06-29-2006, 04:26 PM
Post: #45
Firehawk's N2 racecar project
nmwisima Wrote:This diff parts are available but costs more than 400 euros as the diff itself from Toyota costs more than 1.000 euros Huh

So, get yourself a good used TRD one from Jp.
Well, actually I was thinking of buying a second-hand zenki LSD from TE71Corolla and using the clutch members to fix my kouki one. Smile I already ordered the clutch plates, washers and springs from Toyota some time ago so they'd become quite useless if I went for a TRD 2-way instead.. Might be nicer to learn the car with the OEM 1.5-way first, anyway.
Visit this user's website Find all posts by this user
06-29-2006, 05:24 PM
Post: #46
Firehawk's N2 racecar project
I liked the 1,5 way very much Smile

danielvanderwoude Wrote:looks like the nmwisima joke saved you in the end
[Image: AEU86 AE86 - Firehawk's N2 racecar project] http://www.jdmbits.com
Visit this user's website Find all posts by this user
06-29-2006, 09:00 PM
Post: #47
Firehawk's N2 racecar project
Well done that man, a very worthy owner of an AE86 by the sounds of things Thumbs up!
Find all posts by this user
07-03-2006, 08:31 PM
Post: #48
Firehawk's N2 racecar project

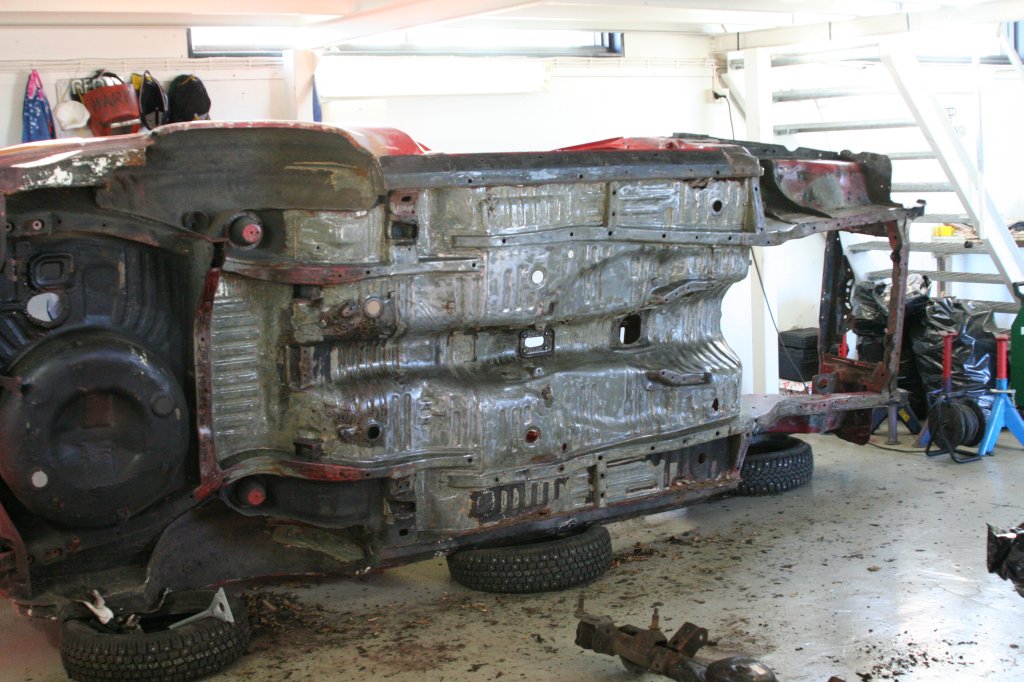

Aargh, still a little more to go... Smile


Attached File(s) Thumbnail(s)

Visit this user's website Find all posts by this user
07-03-2006, 08:47 PM
Post: #49
Firehawk's N2 racecar project
firehawk Wrote:Aargh, still a little more to go... Smile

Ahhh If i'll hat this all this room for rebulding my 86 Yummie! Big Grin

Keep the good job Wave :wink:

SR Team
BURN THE RUBER NOT YOUR SOUL!
Find all posts by this user
07-07-2006, 03:47 PM
Post: #50
Firehawk's N2 racecar project
Hmm, I took the rear light clusters, signals, front corners and the front panel home with me and polished the surfaces a bit with some fine rubbing compound. While making a smooth surface for the front Levin-sticker, I noticed that the "TOYOTA" -text on the front mask is slightly raised from the surface. Have you guys just slapped the sticker on top of it (after removing the white paint, of course) or first wetsanded it down and re-polished?

Oh, and here's some updated versions of the gearing calculator, now with some graphical illustration (anyone remember tweaking gearing in the original Gran Turismo); OpenOffice / Excel


Attached File(s) Thumbnail(s)

Visit this user's website Find all posts by this user
